BIRDMAN BOOKCASE

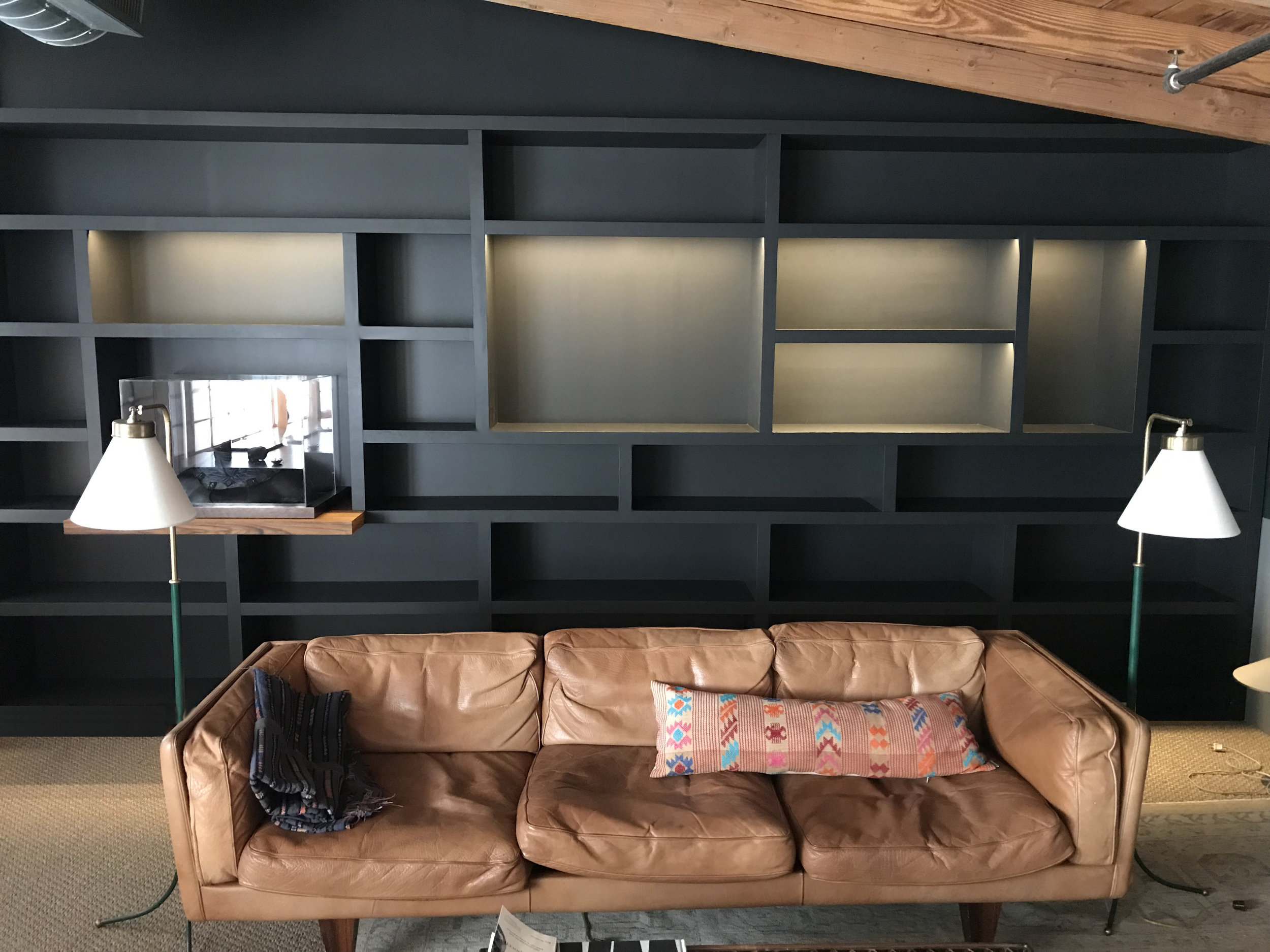

Large-scale display case for movie memorabilia.

  Birch and teak plywood, remote-controlled dimmable LED lighting system, black paint.  Writer/Director Alejandro González Iñárritu needed a bookcase in his office to display, among other items, the mask Michael Keaton wore in  Birdman.  The whole unit assembled is 16’ x 7-1/2”: too big to fit up the stairs (with a 180 degree turn halfway up) to his office, so I designed 8 separate modules that nest together.

Birch and teak plywood, remote-controlled dimmable LED lighting system, black paint. Writer/Director Alejandro González Iñárritu needed a bookcase in his office to display, among other items, the mask Michael Keaton wore in Birdman. The whole unit assembled is 16’ x 7-1/2”: too big to fit up the stairs (with a 180 degree turn halfway up) to his office, so I designed 8 separate modules that nest together.

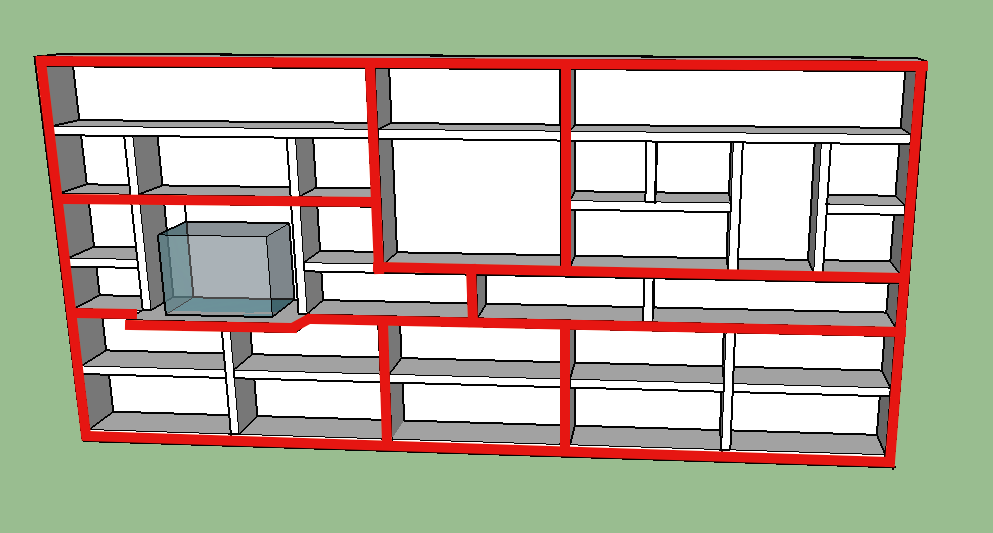

Modeling and Module Layout

Modeling and Module Layout

 3/4” birch plywood with a 1/2” plywood core beefs up the scale of the shelves and dividers and provides a seamless union where modules come together.

3/4” birch plywood with a 1/2” plywood core beefs up the scale of the shelves and dividers and provides a seamless union where modules come together.

Screen Shot 2018-04-02 at 1.31.32 PM.png
 Yet another use for blue tape:  marking out the 180 degree turn of the staircase to ensure the modules will fit.

Yet another use for blue tape: marking out the 180 degree turn of the staircase to ensure the modules will fit.

 Teak plywood glued up for the  Birdman  shelf.

Teak plywood glued up for the Birdman shelf.

 Testing assembly in the shop.

Testing assembly in the shop.

 Teak oil gives a nice glow to the finished shelf.

Teak oil gives a nice glow to the finished shelf.

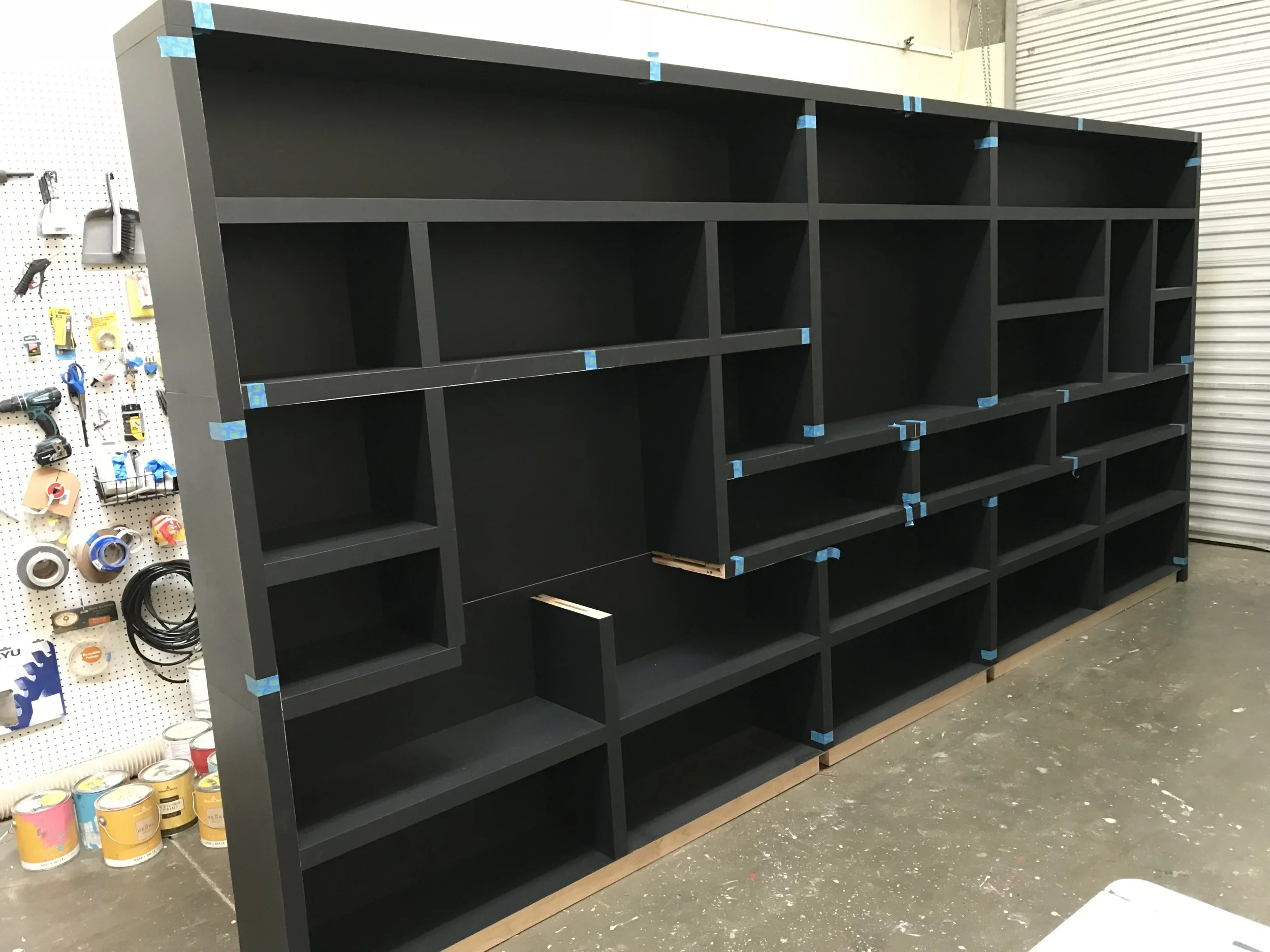

 Blue tape holds on the facing pieces to test the assembly.

Blue tape holds on the facing pieces to test the assembly.

 On-site installation was accomplished in one day with minimal disruption to the busy offices below.

On-site installation was accomplished in one day with minimal disruption to the busy offices below.

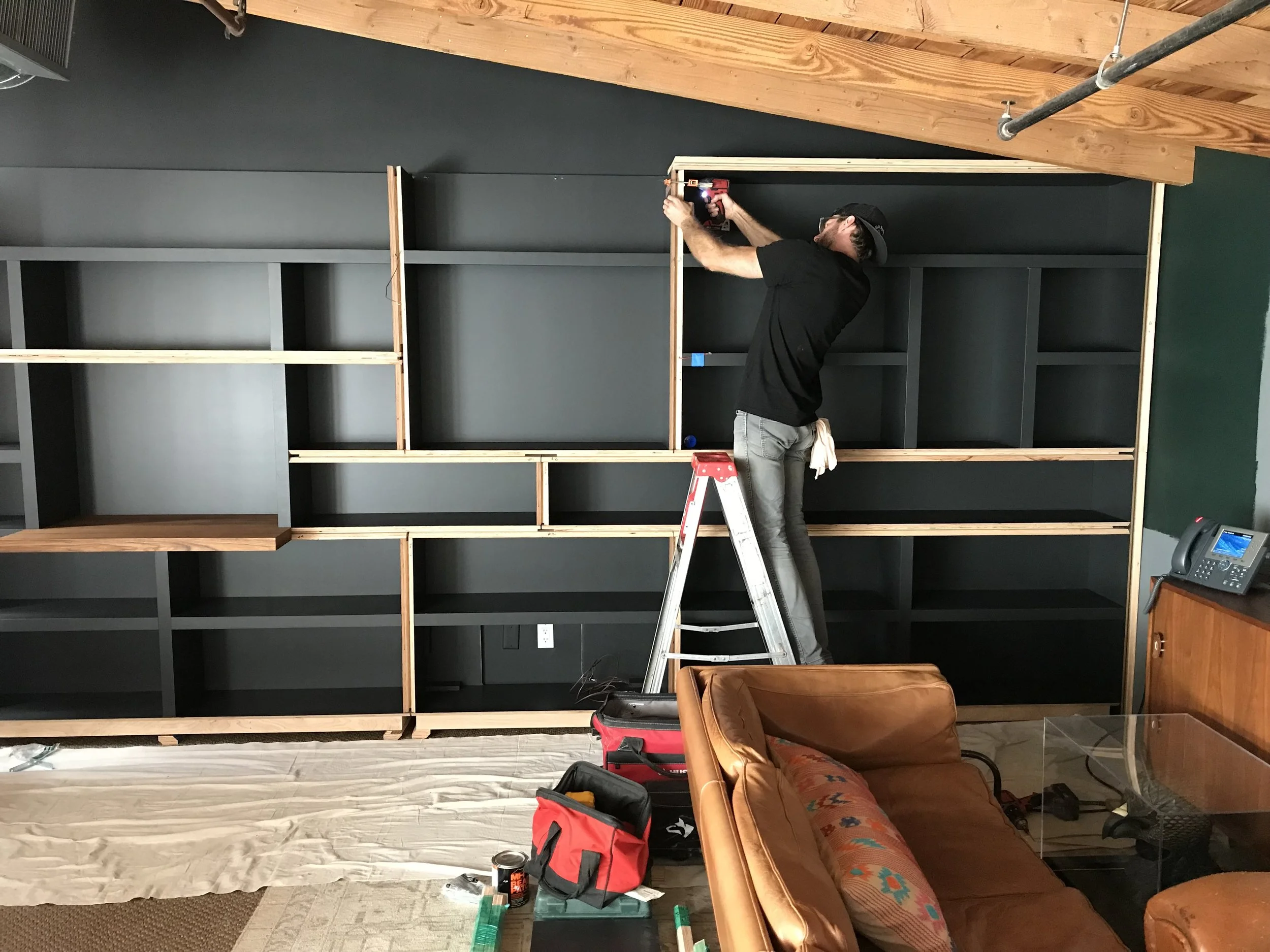

 Modules are screwed together in hidden places with black cabinet screws.

Modules are screwed together in hidden places with black cabinet screws.

 Another benefit of leaving the facing strips off until assembly: concealed wiring of the LED lighting system.

Another benefit of leaving the facing strips off until assembly: concealed wiring of the LED lighting system.
